Ceramic Tiles Belt Conveyor Bend Pulley Diamond Rubber Lagging Head

Ask Lasest Price
Brand Name :	QINYI
Model Number :	Belt Conveyor Bend Pulley
Certification :	CE / ISO / FDA / SGS / TUV
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, Western Union
Supply Ability :	5000 Ton/Tons per Month
Delivery Time :	10~15 days

Add to Cart

Product Details
Company Profile

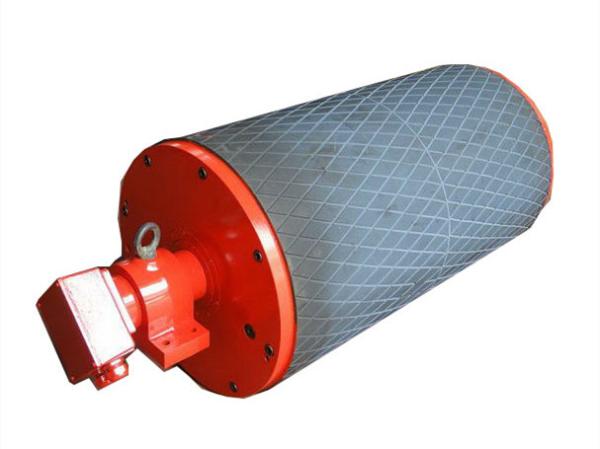

Ceramic Tiles Belt Conveyor Bend Pulley Diamond Rubber Lagging Head

Ceramic Tiles Belt Conveyor Diamond Rubber Lagging Head Bend Pulley

Bolt-on pulley lagging is installed by bolts, it's compounded by rubber layer and steel plate. Hex head fasteners are provided with each kit.

Features:

1. Can be installed on site, no need to remove the pulley
2. Low maintenance, easy and quick to install and replace
3. High wear resistant rubber layer, longer service life
4. Suitable for pulley which is less than Ø1400×1400mm

Technical & Size:

1. Bolt on pulley lagging width: 628mm
2. Rubber Hardness: 60~65 Shore A
3. Rubber Abrasion Loss: ≤ 80mm3
4. Rubber Tensile Strength: ≥ 24MPa
5. Rubber Elongation at Break: ≥880%
6. Peel Strength between rubber and steel plate: ≥ 12KN/m
7. Rubber layer thickness: 12mm, 15mm.
Steel plate thickness: 6mm

Whole thickness: 18mm, 21mm
8. Bolts connection, the radial direction pitch-row is 100mm arc length.

conveyor pulley Description

Material:	steel, nylon, SS, ceramic, PVC, UHMWPE, HDPE
Bearing Model:	6204,6205,6305,6306,6307,6308
Bearing Brand:	HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life:	≥30000 hours
Diameter:	D38mm to D200mm
Belt Width:	B450mm to B2200mm
Application:	recycling industry power industry parcel transport industry petro industry coal mining industry cement concrete industry machining industry
Standard	CEMA/JIS/DIN/Australia
Special:	can be customized according to customer or design for customer
Supply Ability:	1000pcs per day
Certificate:	ISO9001:2008, BV, SGS,TUV

Key Features of flat belt idler pulley

(1).Steady running, reliable quality and reduce maintenance;
(2).Less movement longitudinally, rotating smoothly, extends the life span;
(3).Various bearing housing and sealing structure are available for the customers choice;
(4).Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
(5).Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,
low shaking and less noise.
