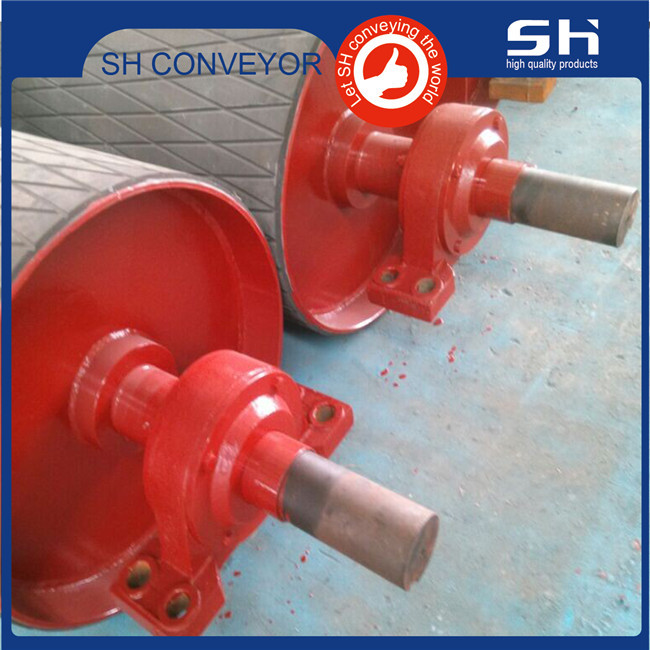

Cement Plant 500mm Width Pci Conveyor Pulleys For Belt Handling
Cement Plant Conveyor Head Drum Active Pulley With An Motor For
Belt Handling
Driving pulley (head pulley) is the main part of belt conveyor to
transmit power. The driving mode of belt conveyor includes single
drum, double drum and multi-drum. Single drum is mostly used in
conveyors with low power, such as coal mine ground transportation
and coal preparation plant. Underground belt conveyors generally
use double drums to make the structure of the conveyor compact.
Driving drum is the power transmission part of conveyor. The
surface of the driving drum is covered with bare steel, herringbone
and rhombic pattern rubber. Bare steel surface can be used for low
power, small bandwidth and environmental drying. The herringbone
glue surface has high friction coefficient, good skid resistance
and drainage, but it has directionality. Conveyor with rhombic
rubber surface for bidirectional operation.
A conveyor pulley used for the purpose of driving a conveyor belt.
Normally mounted in external type bearings and driven by a motor
and reducer. Conveyor head pulleys can be flat faced or crowned and
many have lagging to reduce belt slippage. Conveyor drum pulleys,
wing pulleys and spiral pulleys are the most common style of drive
pulleys.
conveyor head pulley is the main part of belt conveyor to transmit
power.is widely used in
metallurgy,mining,lifting,transportation,Cement,construction,chemical,building,materials,light
industry,petroleum,printing,dyeing and textile etc.
Driving pulley (head pulley) Features
1, The driving pulley (head pulley) is welded by steel plate, and
using rolling bearings.
2, The surface of driving pulley (head pulley) includes three type:
smooth, plastic and cast plastic. Usually the smooth pulley can be
used on condition that the power is not big, and the the ambient
temperature is low. The plastic surface pulley should be used when
it is easy to slip.
Product Paramenters
| Product name | conveyor rubber spiral wing tail drum pulley |
| Place of Origin | hebei, China (Mainland) |
| Brand Name | Double Arrow |
| Standard | CEMA / JIS / DIN / ISO |
| Certification | ISO9001/BV/SGS |
| Material | steel, SS |
| Bearing Model | UCP,UCT or others |
| Bearing Brand | HRB, LYC, ZWZ,SKF, NSK,C&U |
| Working Life | ≥30000 hours |
| Diameter | D500mm to D2000mm |
| Belt Width | B500mm to B3000mm |
| Application | coal, metallurgy, machinery, ports, electrical, chemical, foundry,
building materials, food and other fields. |
| Special | can be customized according to customer or design for customer |
| Supply Ability | 50pcs per day |
| Guarantee | 12 months |
| Contract manufacture | OEM services offered, design services offered |
| Business type | Factory, welcome to visit
|
Advantage of our conveyor roller:
a) Easy installation and nice flexibility.
b) Strong construction and perfect dynamic balance.
c) Reduce vibration and 20% lifetime extension of belt.
d) Extremely low roundness and low friction coefficient.
e) Heavy-duty carrying capacity and definitely water/dust proof.
f) Powder coating makes the roller high wear resistance and
good-looking.
g) Strict inspection standard ensures our high quality product.
