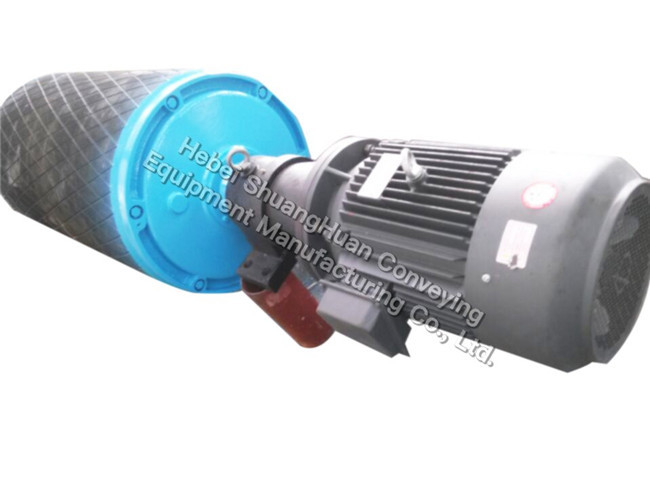

Motorized 18.5KW Conveyor Tail Pulley With Explosion Protection

Motorized 18.5KW Conveyor Tail Pulley With Explosion Protection

Conveyor Belt Roller Motorized Pulleys Wtih 15kw Drum Motor For Steel Mill Factory

The drum motor of Motorized Pulley is one of the ideal driving equipment for belt conveyor. It perfectly combines the motor, gearbox and drive pulley.

Products Features:
1. Simple design and installation
Selecting an drum motor only needs to know the four parameters of diameter, velocity, power and belt width. Unlike the combination of gearbox and drive pulley, you must choose gearbox series, speed ratio, and drive pulley model, as well as coupling series and model.The installation of the drum motor does not require bracket of gearbox and motor, also don’t need to adjust the concentricity of the equipment.
2. High efficiency
The transmission efficiency of the drum motor is 3% -5% higher than that of the gearbox + transmission drum combination.
3. Save space
The motor and reduce equipment are installed in the drum body to achieve maximum space savings. Very suitable for places with small spaces, such as tunnels .......
4. Low environmental requirements
The drum motor is suitable for various harsh environments, such as high altitude, low temperature, high humidity and so on.
5. Excellent reduction gear
Hard gear surface, Reducer structure is similar to Rulmca; It adopts the fixed shaft reducer structure when power is less than 18.5KW; It adopts the planetary reducer structure the power is greater than 18.5KW.
6. Functions such as backstop, brake, speed control, explosion protection can be added according to actual needs

Advantages and Features

1. Conveyor length can be customized according to your need.
2. 0° - 30° inclination to suit the on-site conditions.
3. Belt width can be 500-2400mm as your require.
4. Low horsepower compared with other types of conveyor
5. Belt conveyor cleaner is installed to clean the conveyor belt.
6. Corridors are built along the belt conveyor for inspection and maintenance.
7. Conveyor rollers are manufactured by our special roller production line, available of types of roller to ensure smooth conveyor system.
8. Conveyor belt brand is YOKOHAMA, high quality and reliable.
9. Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;
10.Bearing brand can be domestic or imported: C&U, LYC, HRB , WZS, , NSK, SKF etc.

conveyor pulley Description

Type	Belt width(mm)	Standard Diameter(mm)	Length(mm)
Drive Pulley	500	500	Length of the pulley depends on the belt width of the conveyor
	650	500~630
	800	630~1000
	1000	800~1150
	1200	800~1150
	1400	1000~1350
	1600	1150~1600
	1800	1150~1800
	2000	1350~2000
	2200	1600~2200
	2400	1800~2400
Bend Pully	500	250~500
	650	250~630
	800	250~1000
	1000	250~1600
	1200	250~1600
	1400	315~1600
	1600	400~1600
	1800	400~1600
	2000	500~1600
	2200	630~1600
	2400	800~1600

Parameter of conveyor drum pulley
Type	Belt width(mm)	Standard diameter(mm)	Length(mm)
Driving pulley, bend pulley	500	500	Length of pulley depends on the width of conveyo belt
	650	500~630
	800	630~1000
	1000	800~1150
	1200	800~1150
	1400	1000~1350
	1600	1150~1600
	1800	1150~1800
	2000	1350~2000
	2200	1600~2200
	2400	1800~2400

Advantages and Features

1. Advanced welding capability ensure excellent quality of conveyor pulley.
2. Shell cylinders are rolled from the highest quality flat plate and longitudinally seam welded with a prepared full penetration butt weld.
3. Hub and end disc can be welded together or forged as one-piece depending on different types of pulley.
4. Pulley shells are finish machined and can be rubber lagged according to your requirements.
5. The dimension and tolerance of the pulleys also can be custom-made according to the drawing provided by you.
6. Dynamic balancing grade is very common for our engineered pulleys. No balance weight outside the end disc is available upon request.
7. With different sizes and lagging types available for you.
