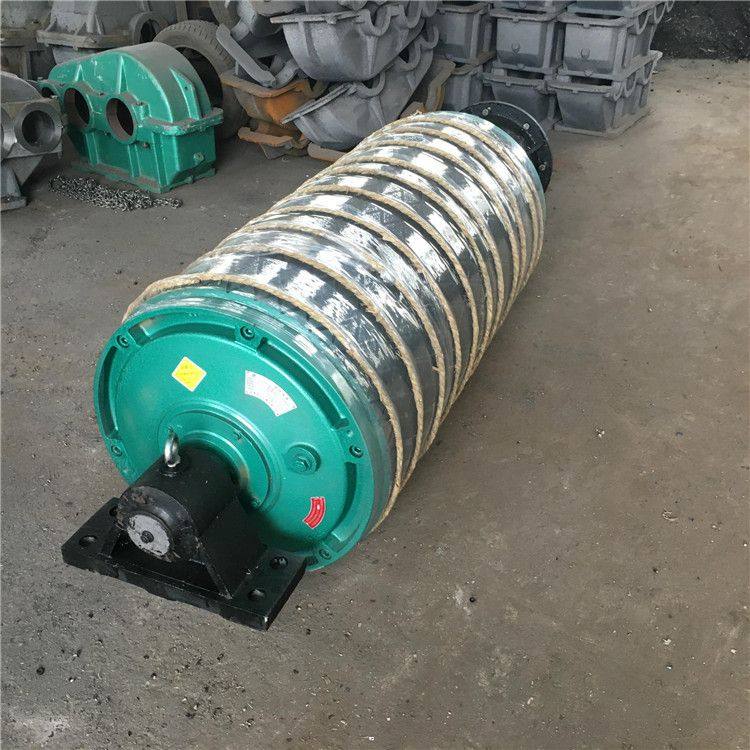

Waterproof 500mm Motorized Conveyor Pulley

Waterproof 500mm Motorized Conveyor Pulley

Driving Pulley Electric Pulley Head Conveyor Pulley with Inside and out Side Motor

The motorized pulley has many advantages such as compact structure,small footprint,easy installation,longerlife,high transmission efciency,low noise,smooth and reliabe operation.It can work in the wet,muddy,dusty and other harsh conditions.

The explosion-proof electric roller is used as the driving device of conveying machinery in the explosive mixture environment formed by combustible gas, gas, dust, etc.
The product is an ideal driving device for various fixed belt conveyors. It adopts planetary cycloid reducer inside of the housing, which has the characteristics of large bearing capacity, strong overload capacity, stable transmission, low noise, long service life, etc. It can meet the requirements of various backstop and rubber coating.

The turning pulley is used for changing the direction of the belt running or increasing the wrap angle between theconveyor belt and the driving pulley As per different carrying capacities,the bend pulley can be divided into three calegories:light duty,medium duty and heaw cluty.The pulley which is used for extending the contact surface,is usualy used for belowor equal to 45 degree bending.The sutace treatment of the bend puley can be smooth stel and fat rubber lagging.

Working condition:

-15ºC~40ºC The ambient temperature is - 15 ºC ~ 40 ºC;
1000meters Altitude not more than 1000M;
60ºC The temperature of conveying materials shall not exceed 60 ºC;
frequency:50Hz;
Voltage: 380/660V, 660/1140V.

Characteristics:
It can contain all electrical components that are easy to cause sparks in the flameproof enclosure;

Compact structure, small space;
Easy to use and maintain, operating safely and reliable, longer service life
It can meet the requirements of various backstop, braking, rubber coating, etc.

conveyor pulley Description

Model No.	Belt Width	Width of blade	AOL(G)	Pulley Dia.	L1	L2
DCCD500S-1	500	400	1200	500 630 800 1000 1250 1400 1600 500 630 800 1000 1250 1400 1600	326 338 356 376 400 416 436 336 348 366 386 410 426 446	195 258 342 441 563 636 735 189 252 336 335 557 630 729
DCCD650S-1	650	600	1300
DCCD800S-1	800	800	1500
DCCD1000S-1	1000	1000	1700
DCCD1200S-1	1200	1200	1900
DCCD1400S-1	1400	1400	2100
DCCD1600S-1	1600	1600	2300
DCCD1800S-1	1800	1800	2500
DCCD2000S-1	2000	2000	2700
DCCD2200S-1	2200	2200	2900

Type	Belt width(mm)	Standard diameter(mm)	Length(mm)
drive pulley , tail pulley, snub pulley, take up pulley etc.	500	500	Length of pulley according to different belt width and accept custamized size
	650	500~630

	800	630~1000

	1000	800~1150







Material:	steel, SS
Bearing Model:	UCP,UCT or others
Bearing Brand:	HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life:	≥30000 hours
Diameter:	D320mm to D630mm
Belt Width:	B500mm to B1000mm
Application:	recycling industry
	power industry
	parcel transport industry
	petro industry
	coal mining industry
	cement concrete industry
	machining industry
Supply Ability:	1pcs per day
Certificate:	ISO9001:2015, BV, SGS

Professional advantage:
More than 10 years’ professional producing experience.
Quality Assurance,price advantage:
We have our own factory, you can get a competitive and reasonable price with high quality.
Service advantage:
We can reply your Enquiry timely and effective.
High efficiency:
Once our customers release their orders, we will arrange the production and shipping fastly .
