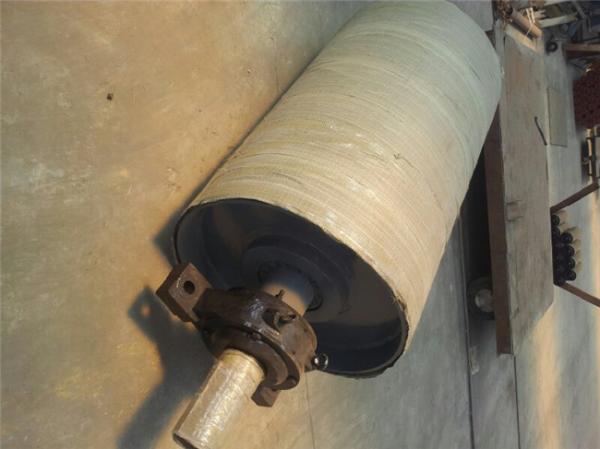

Diameter 2400mm Drum Pulley Conveyor With Smooth Steel Surface

Belt Conveyor System Drive Pulley Conveyor Drum , Belt Conveyor Idler Pulley

Belt conveyor pulley is the main component of belt conveyor, could be divided into driving pulley and driven pulley according to different usage. The surface could be smooth painted, or covered by rubber.

Driving pulley provides the driving force for the conveyor. In order to increase pulley life and traction, it often has a larger diameter than other pulleys.

Driven pulley is also called as redirection pulley, which is used to redirect the conveyor belt or press it tightly.

The Head Pulley gives motion to the conveyor belt. The driving pulley can be at the head end or at the tail end, depending on the layout of the conveyor, space available and loading conditions. It is the head end where generally the belt discharges the carried material and return for loading. Besides, we offer these Head Pulleys at the affordable price range.

Tail Pulley is similar to the head end pulley of the conveying system, but the tail end pulley is not attached to a driving mechanism rather it moves with the movement of the conveyor belt which draws power from the head end pulley. The Tail Pulley is located at the tail end of the conveyor and it turns freely.

The use of a Snub Pulley is to prevent belt slippage which means costly downtime. Mounted close to the drive pulley on the return side of the belt, the Snub Pulley’s primary job is to increase the angle of wrap around the drive pulley, thereby increasing traction. Another function of Snub pulley is to reduce belt tension, which is important in maximizing the conveyor life.

Bend Pulley is used for changing the direction of conveyor belt or increasing the surrounding angle between conveyor belt and driving pulley.

Pulley, which can be moved to keep belt tight, is called take-up Pulley. Take-Up Pulley may be a drive pulley or an idler pulley.

Product Paramenters

Pulley Feature:

1. The belt conveyor drum/ pulley is made by large seamless steel.

2. Use flame cutting machine to precisely cut tube.

3. Weld the pulley inner disc with professional welding machine.

4. Weld the shaft sleeve and disc with the positioner.

5. Process the outside circle with large drum lathe to guarantee the even wall thickness.

6. We select #45 round steel and sleeve to ensure the concentricity and reduction for the eccentric shaft force.

7. Equip the inner bearing enlargement device to avoid bearing damage from beating.

8. We will make the static balance inspection when the belt speed exceeds 2.5m/s.

9. We can produce different type,different standard pulley according to customers’ request.

Advantages

• Wide range to meet even the toughest demands standard range for light- and medium-duty as well as specially engineered and extra-heavy-duty pulleys for special applications.
• Precision manufacture and accurate assembly for low maintenance for continued operation, low total cost of ownership.
• Advanced pulley design process incorporating Finite Element Analysis ensures all Joyroll pulleys are designed to world's best practice for consistent performance.Joyroll pulleys effectively and reliably transfer the drive motor load to the belt and provide support for changes in the belt direction.
• Optimized, standardized bearing centers.
• Weight-optimized designs.
• Efficient locking elements.
• High loading capacities.

HEBEI QINYI CONVEYING EQUIPMENT CO.,LTD is founded in 1994, QINYI has professional production workshops and modern production lines. covering an area of more than 60,000 square meters, with the registered capital of more than USD1,888,000.

QINYI mainly engaged in designing and manufacturing bulk conveying systems and equipment, we are specialize in gravity conveyor. roller and pulley.QINYI products are widely used in mining, coal, port, power station,building and metallurgy, etc.

With the high quality, reasonable price, fast delivery, good after-sales service. QINYI has obtained the customer high praise and keep cooperation now.

In order to ensure the quality of the products, QINYI have passed the ISO9001:2000 quality management system certification. According to GB/T19001:2000 standard, QINYI has established a quality management system, which provides a reliable guarantee for the quality stability.

It's our principle in business to honor the contract and keep our promise.

QINYI has exported to Italy, Germany, Hungary, America, Holland, Chile, Tunisia, Malaysia, Vietnam, Philippines, Indonesia, Pakistan and many other countries.

QINYI welcome you to send us the inquiry and other questions, we would like to improve with you together and looking forward to cooperate with you at any time.
