Carbon Steel Conveyor Belt Idlers
Carrying Return Flat Steel Idler Roller For Belt Conveyor system
Idlers are used to take-up extra belt length and provide adjustment
for tensioning belt drives. Idler pulleys and sprockets can alter
belt paths and clear obstructions.
Idler assembly may consist of: idler sprocket and bracket, flat
idler and bracket, standard sheave or sprocket used with an idler
bearing and idler bracket.
Idler sprockets, flat idlers and idler bushings contain sealed ball
bearings and an integral shaft for mounting to adjustable idler
brackets.

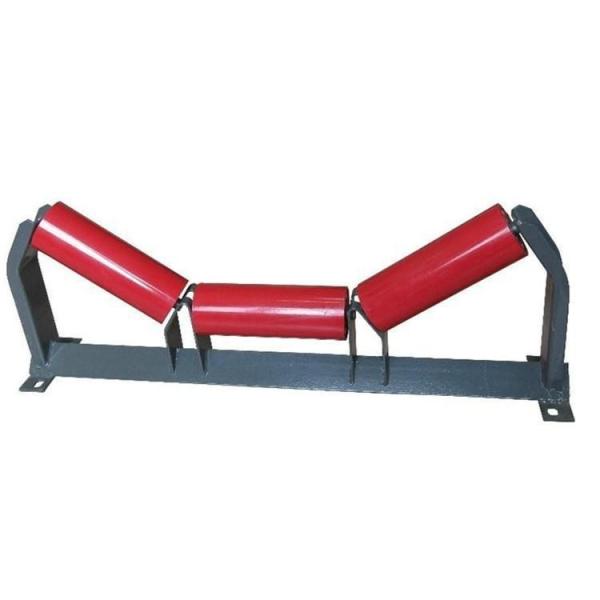

Benefits of Troughing Idlers
Troughing idlers offer two important benefits. First, the troughing
idlers keep the belt’s shape consistent throughout its journey,
which improves both stability and carrying capacity. Second,
troughing idlers reduce the amount of material that may
accidentally spill over the edge of the conveyor system, which
improves productivity and also increases the safety of workers, who
may be at risk from falling material while working near conveying
equipment.
The Roller Parameters:
| Steel idler Diameter | 50mm-219mm |
| Steel idlerLength | 90-3400mm |
| Steel idlerTube | impact disc, rubber rings |
| Steel idlerShaft | 45# STEEL Diameter:20mm-70mm |
| Steel Idler Bearing | Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3
clearance. |
| Steel Idler Seal | Grease retaining inner seal with Multi-stage Labyrinth and
Retention Cap with Outboard Rubbing Flinger Seal. |
| Steel Idler Lubrication | Grease is Lithium soap type grease with Rust Inhibitors. Sinopec/
Shell Brand |
| Steel Idler Application | mines, metallurgy, power, machinery, construction and other related
industries |
| Steel Idler Welding | CO2 gas shielded arc welding end |
| Steel idlerPainting | Rubber coated |
| Steel idlerService Life | 50,000 hours |
The Roller features:
1) Steady running, reliable quality and reduce maintenance;
2) Less movement longitudinally, rotating smoothly, extends the
life span;
3) Various bearing housing and sealing structure are available for
the customer's choice;
4) Multi pass labyrinthine sealing, preventing the mixed dirt and
water immersed;
5) Manufacturing by steel pipe especially for of high precision
roller, ensuring the strong load, low shaking and less noise.
product design
Standard Diameter(mm) | Standard Diameter(Inch) | Lengthscope (mm) | Bearings Type (Min-Max) | dler's shell wall thinkness |
| 63.5 | 21/2 | 150-3500 | 204 | 3.0mm-3.75mm |
| 76 | 3 | 150-3500 | 204 205 | 3.0mm-4.0mm |
| 89 | 31/3 | 150-3500 | 204 205 | 3.0mm-4.0mm |
| 102 | 4 | 150-3500 | 204 205 305 | 3.5mm-4.0mm |
| 108 | 41/4 | 150-3500 | 204 205 305 306 | 3.5mm-4.0mm |
| 114 | 41/2 | 150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
| 127 | 5 | 150-3500 | 204 205 305 306 | 3.5mm-4.5mm |
| 133 | 51/4 | 150-3500 | 204 206 207 305 306 | 3.5mm-4.5mm |
| 152 | 6 | 150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
| 159 | 61/4 | 150-3500 | 204 206 207 305 306 307 308 | 4.0mm-4.5mm |
| 165 | 61/2 | 150-3500 | 207 305 306 307 308 | 4.5mm-6.0mm |
| 194 | 75/8 | 150-3500 | 207 307 308 309 310 | 4.5mm-6.0mm |
| 219 | 85/8 | 150-3500 | 308 309 310 | 4.5mm-6.0mm
|
Main Features
1. Roller Diameter:76-219mm.
2. Roller Length: 150mm to 3500mm .
3. Roller tube: Q235 seamless carbon steel.
4 .Color: Black, red and grey.
5. Painting: ordinary painting, hot galvanized painting, electric
static spraying painting, baked painting.
6. Welding: CO2 gas shielded arc welding end.
7. Professional roller production line.
8. Professional designing and inspection team.
9. Certification: ISO9001;2008 ISO14001;2004 ISO 18001
10. Bearing, bearing housing and sealing: The bearing quality
determines the life of a roller. We use world and Chinese famous
brand with high quality to make the idler has the ideal static and
dynamic balance. We adopts labyrinth sealing to prevent the
corrosion of the impurity, the water and the air effectively. So
that our idlers have minimum revolving resistance, long life, small
maintain work and high load capability.
